User Guide

  • Updated

Welcome to the Pig Brig Trap System family!

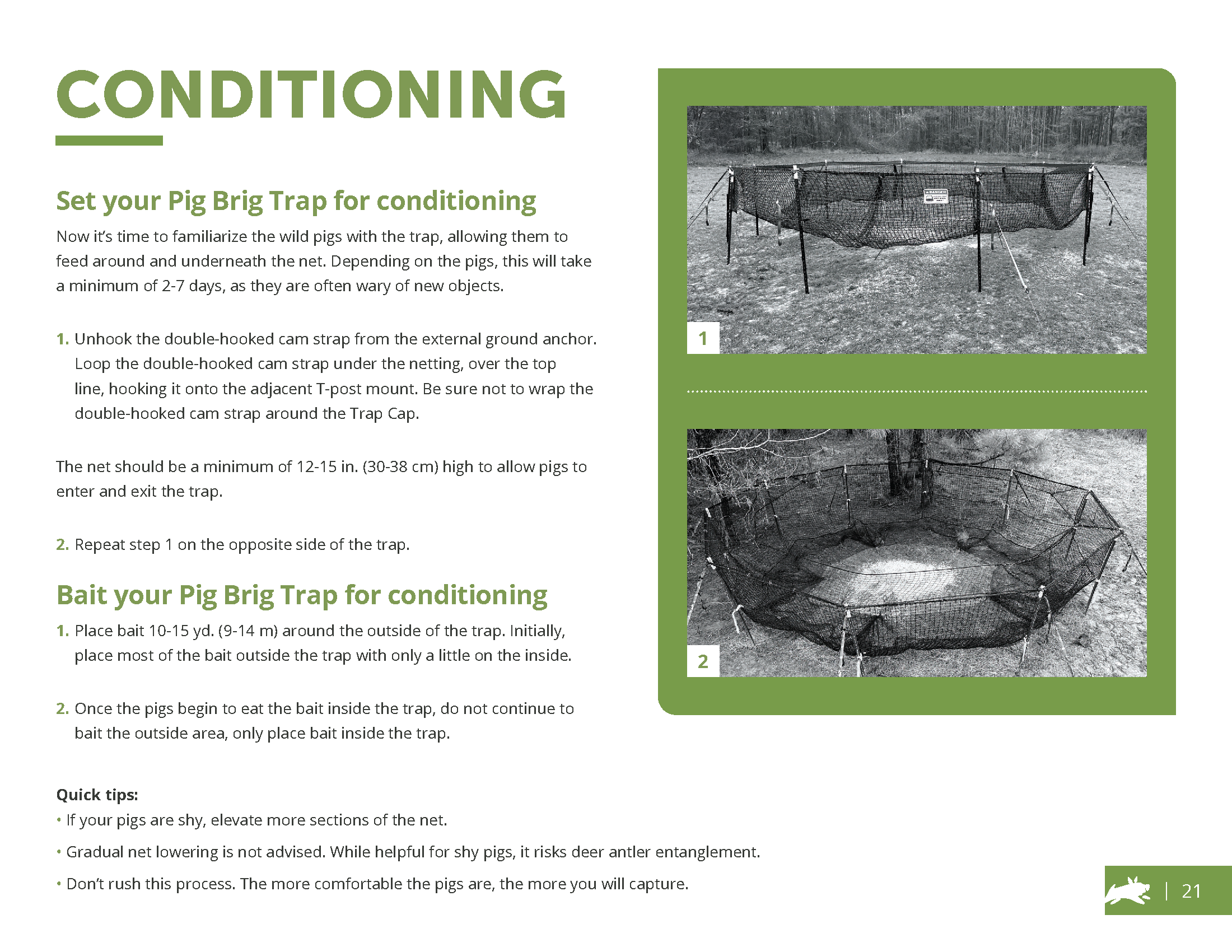

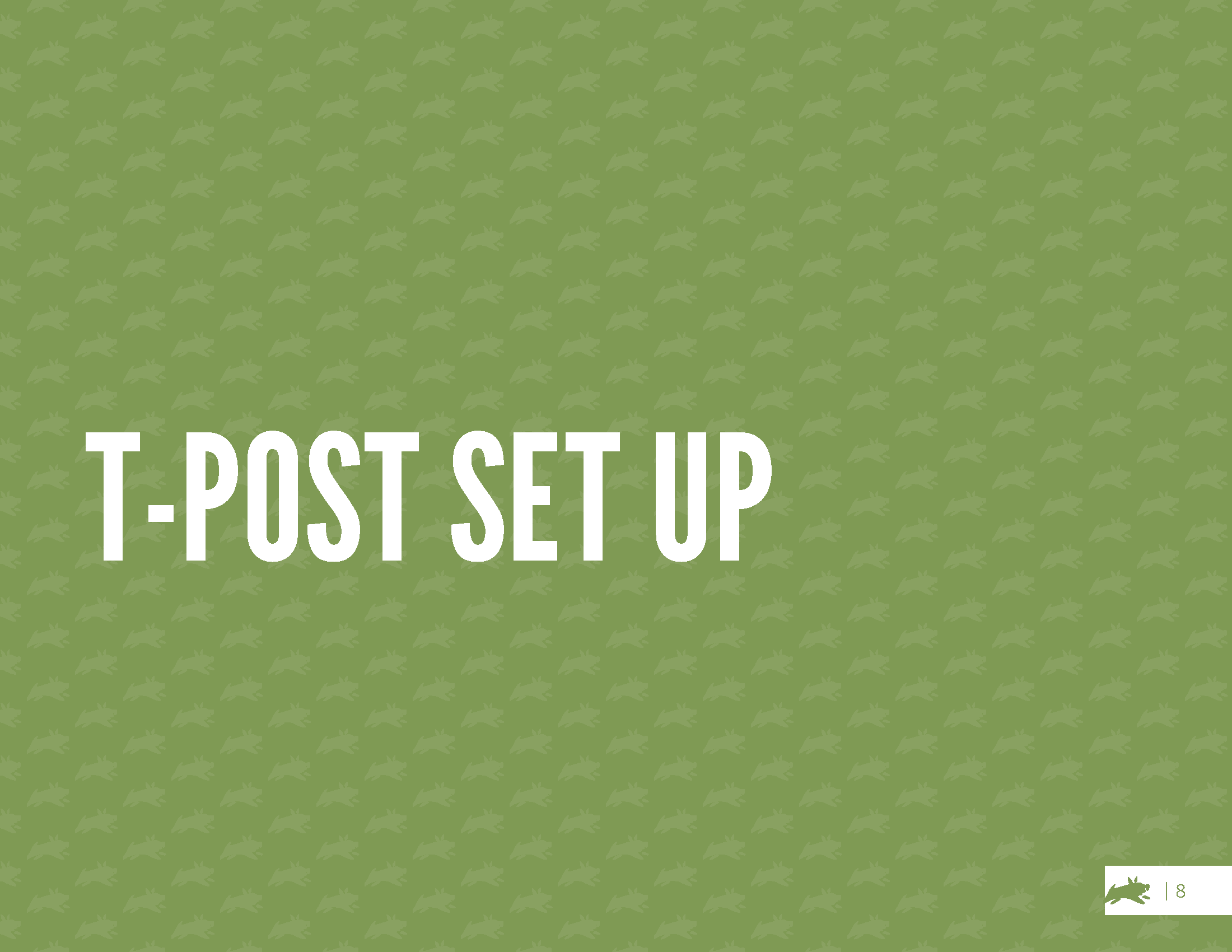

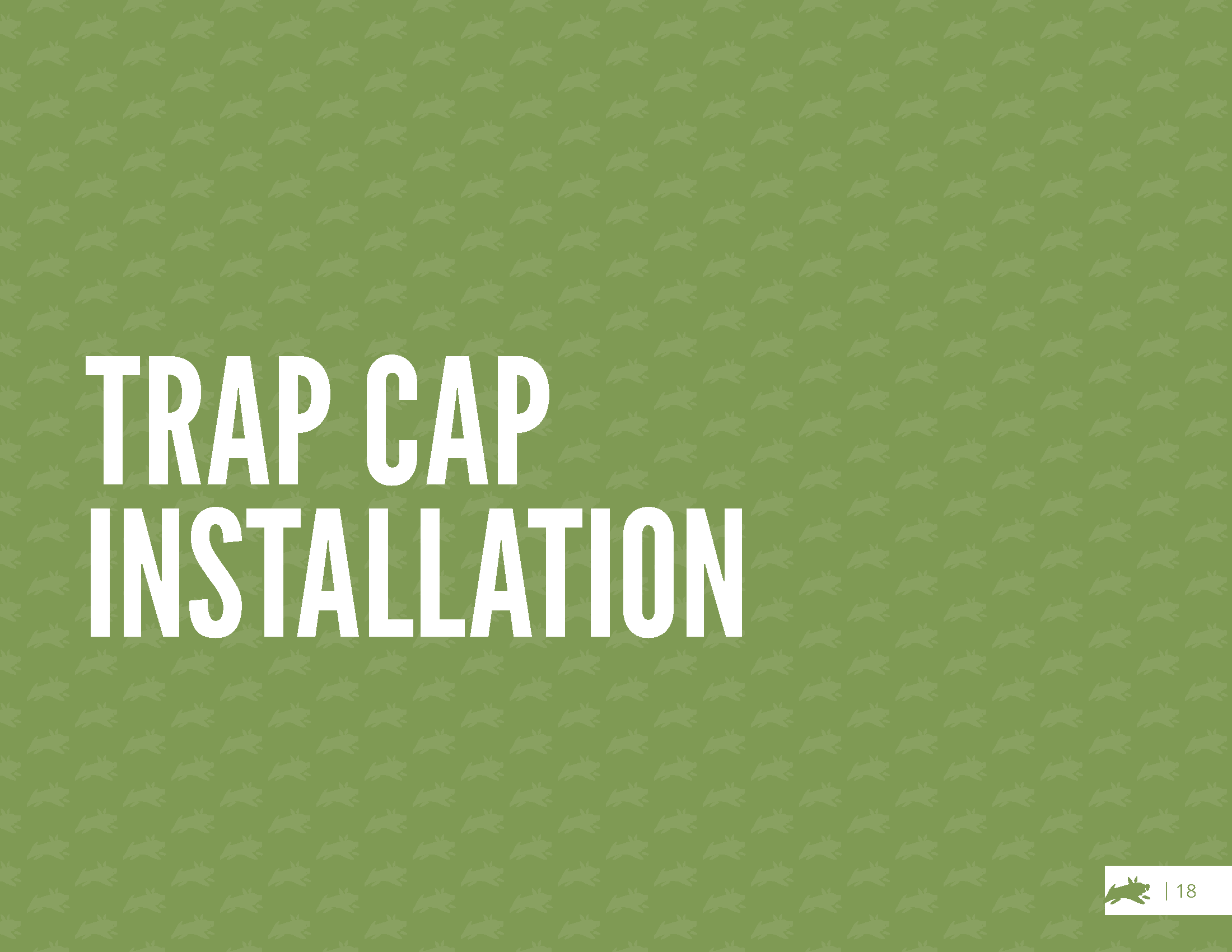

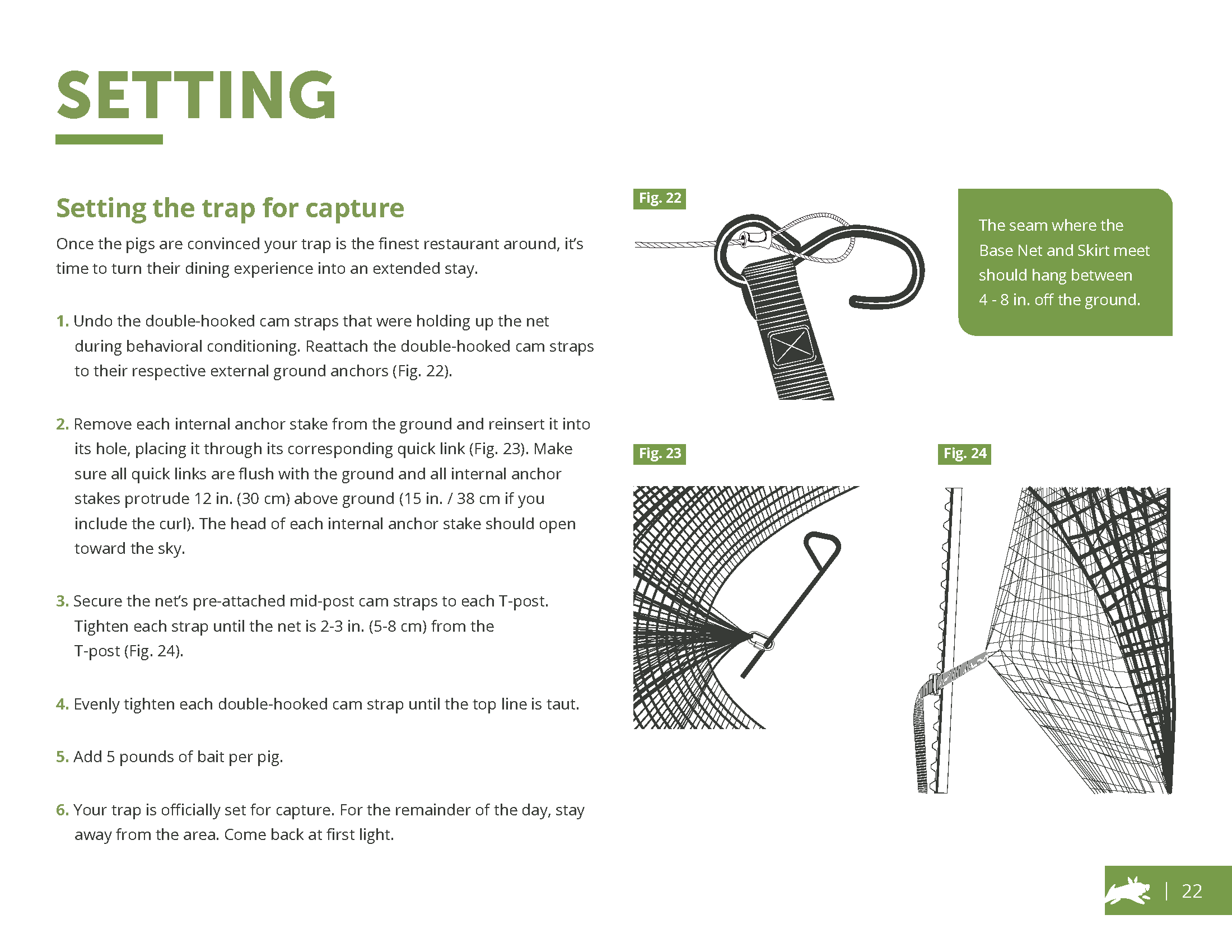

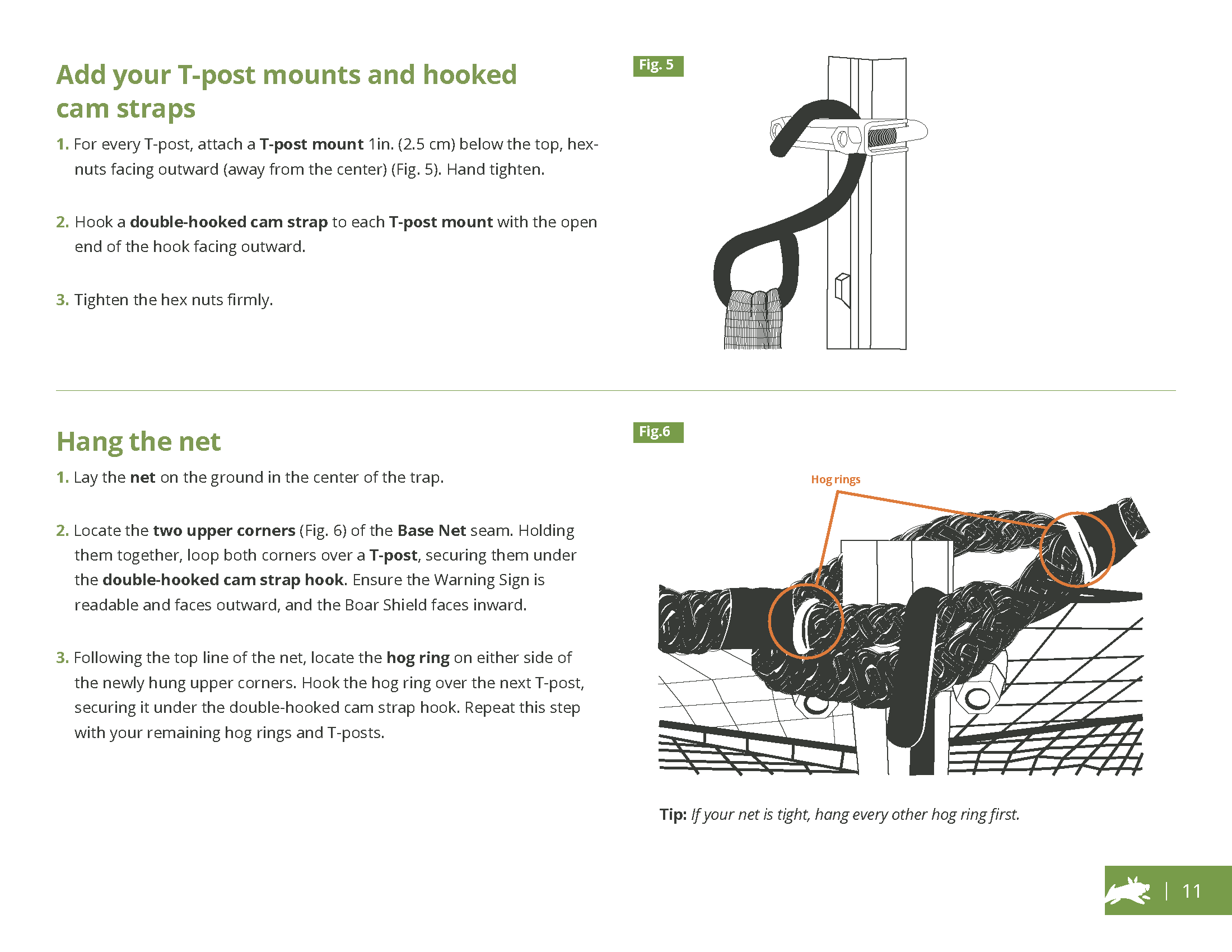

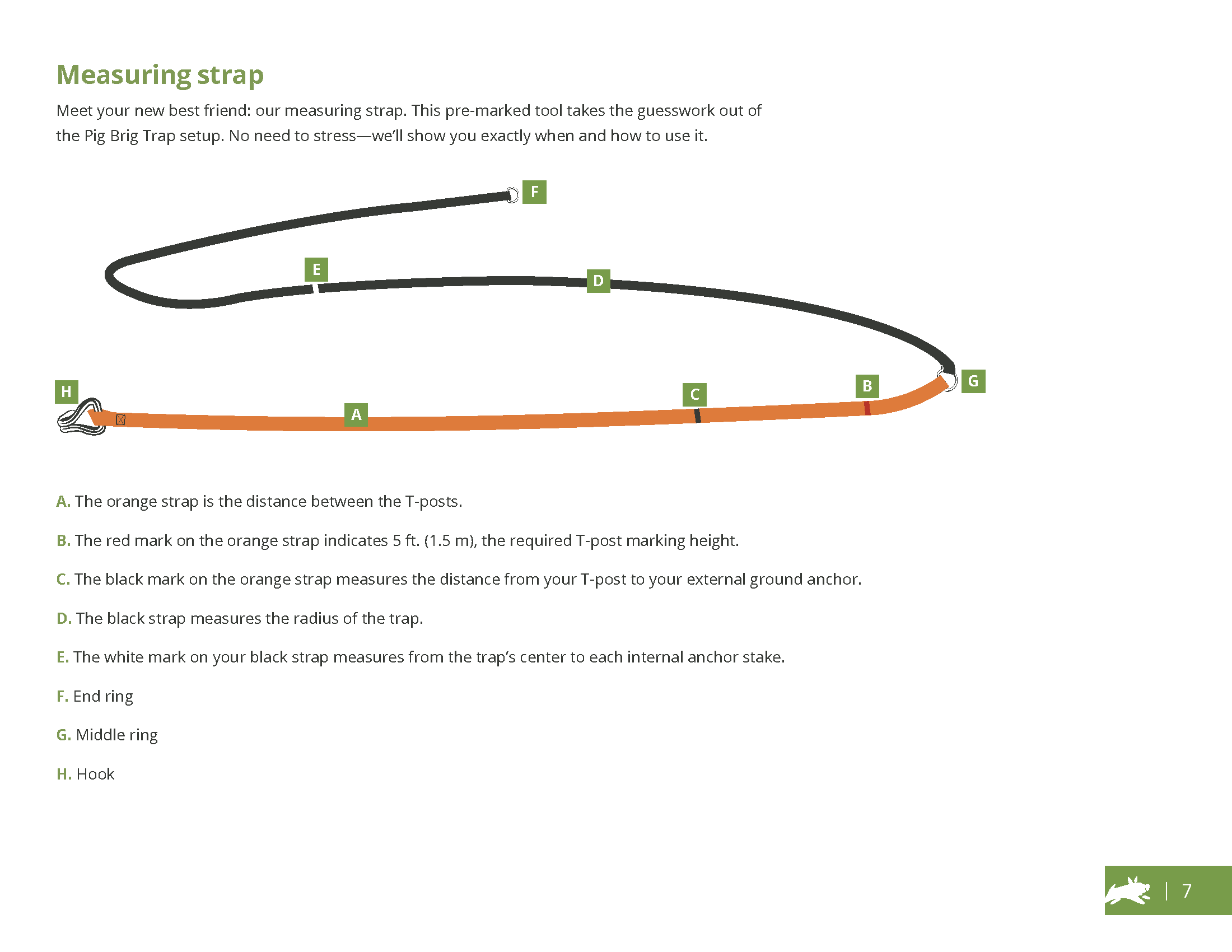

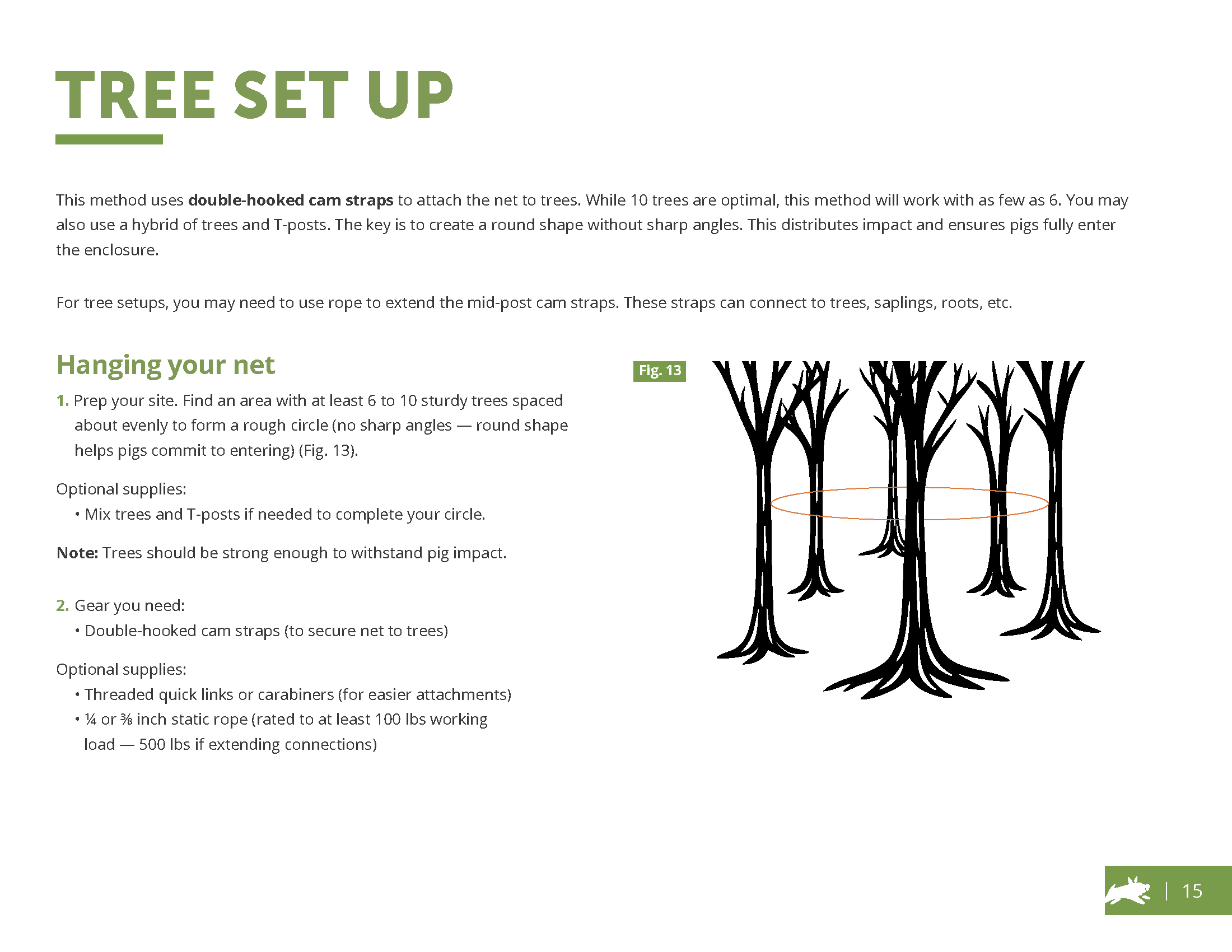

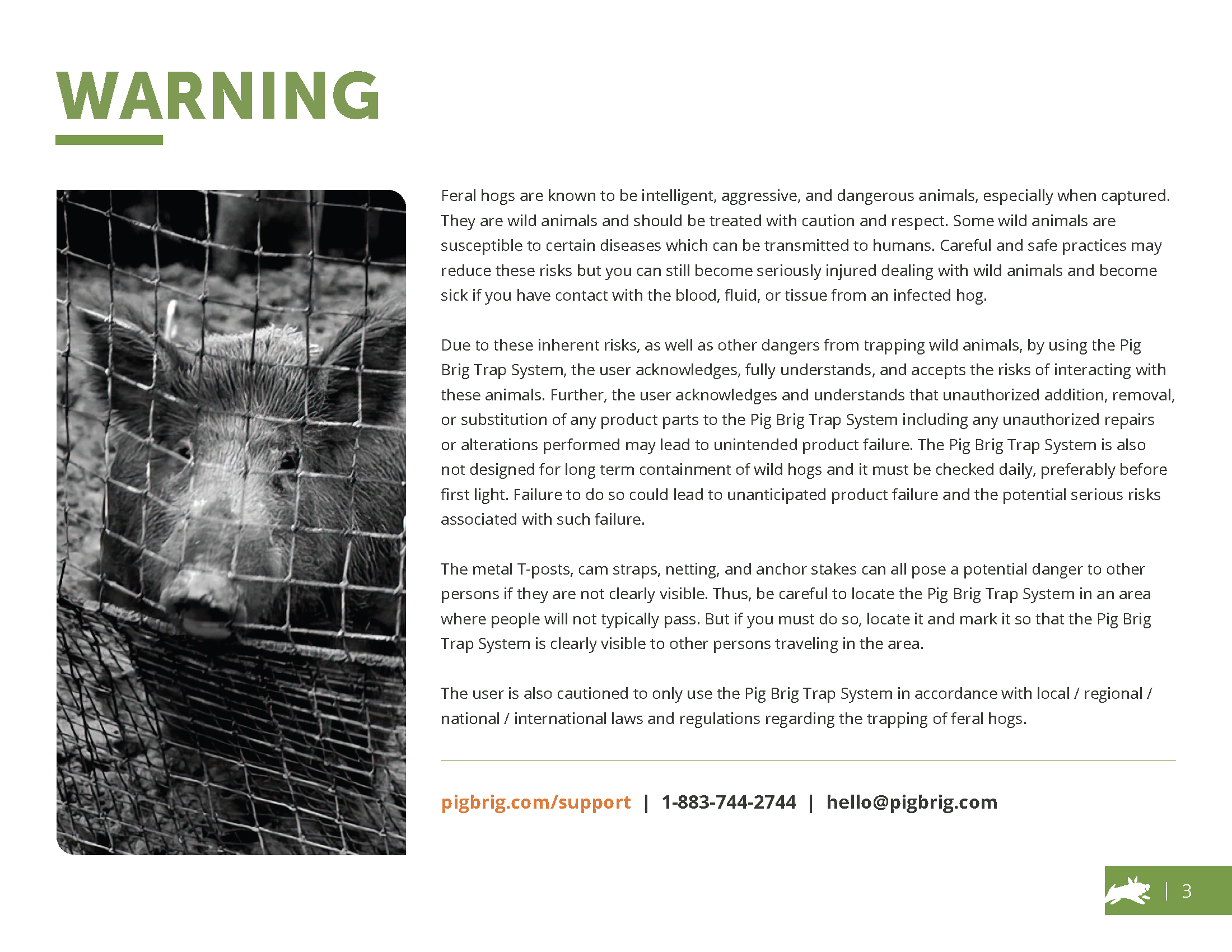

The Pig Brig User Guide is your instruction manual for setting up your trap. Please read it before heading out into the field.

Download a PDF version of the User Guide here.

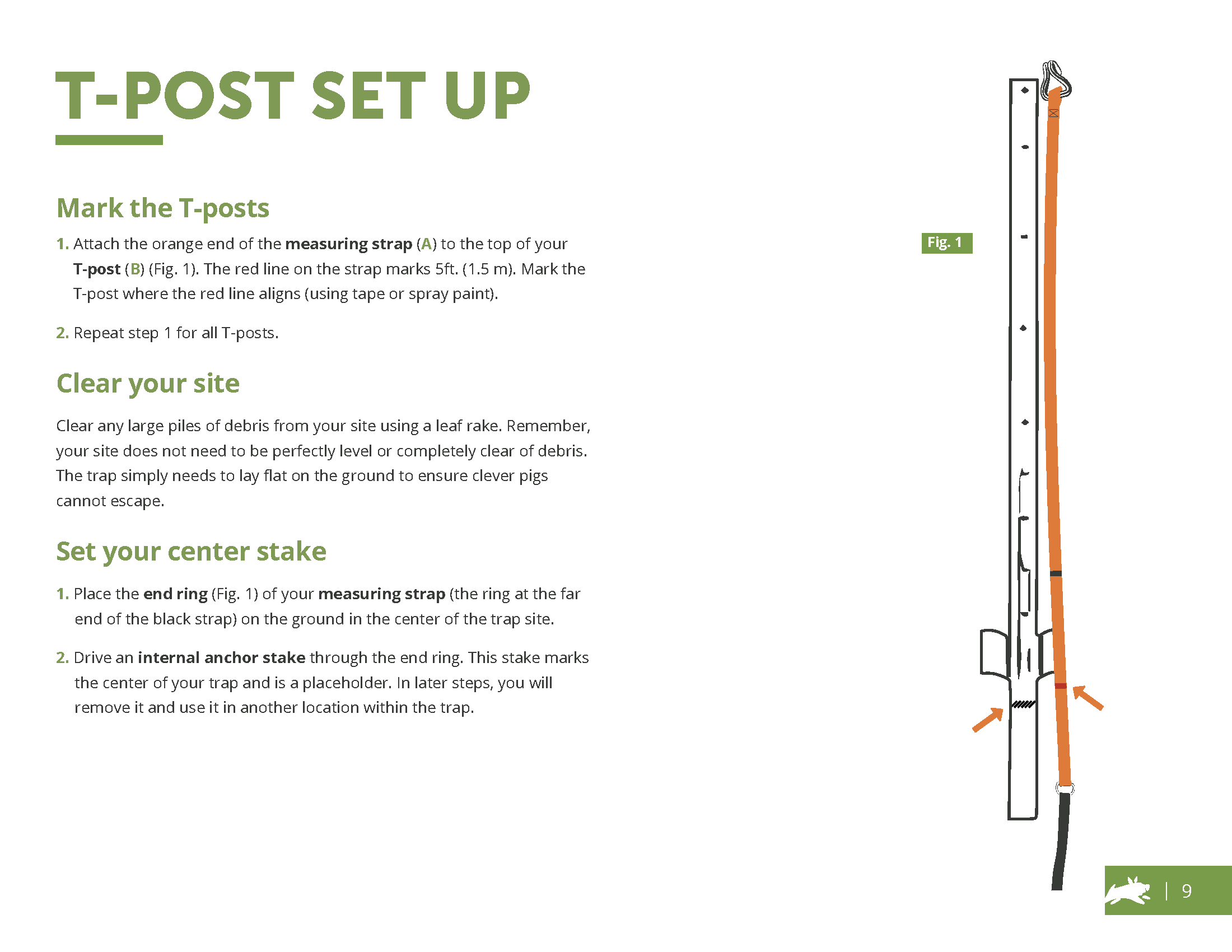

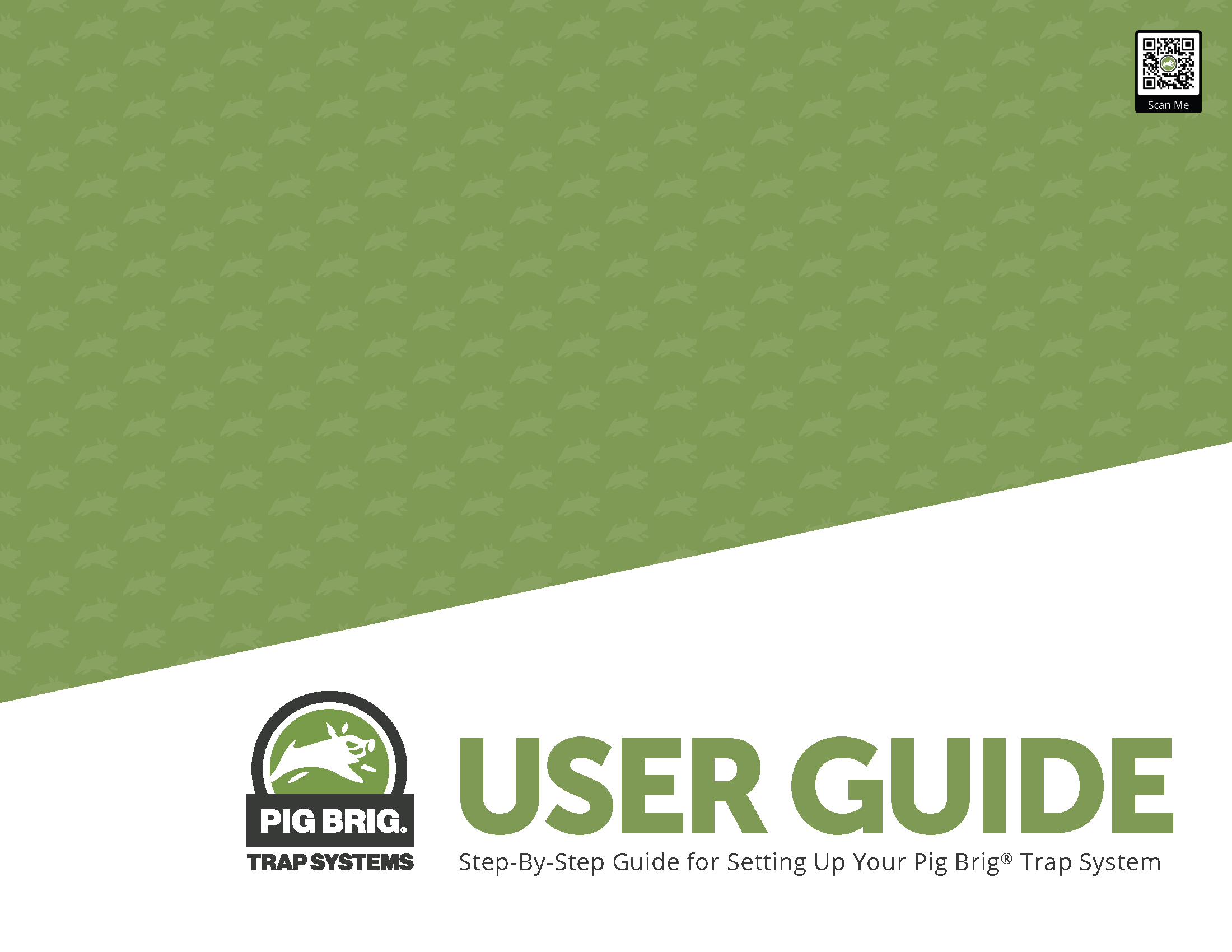

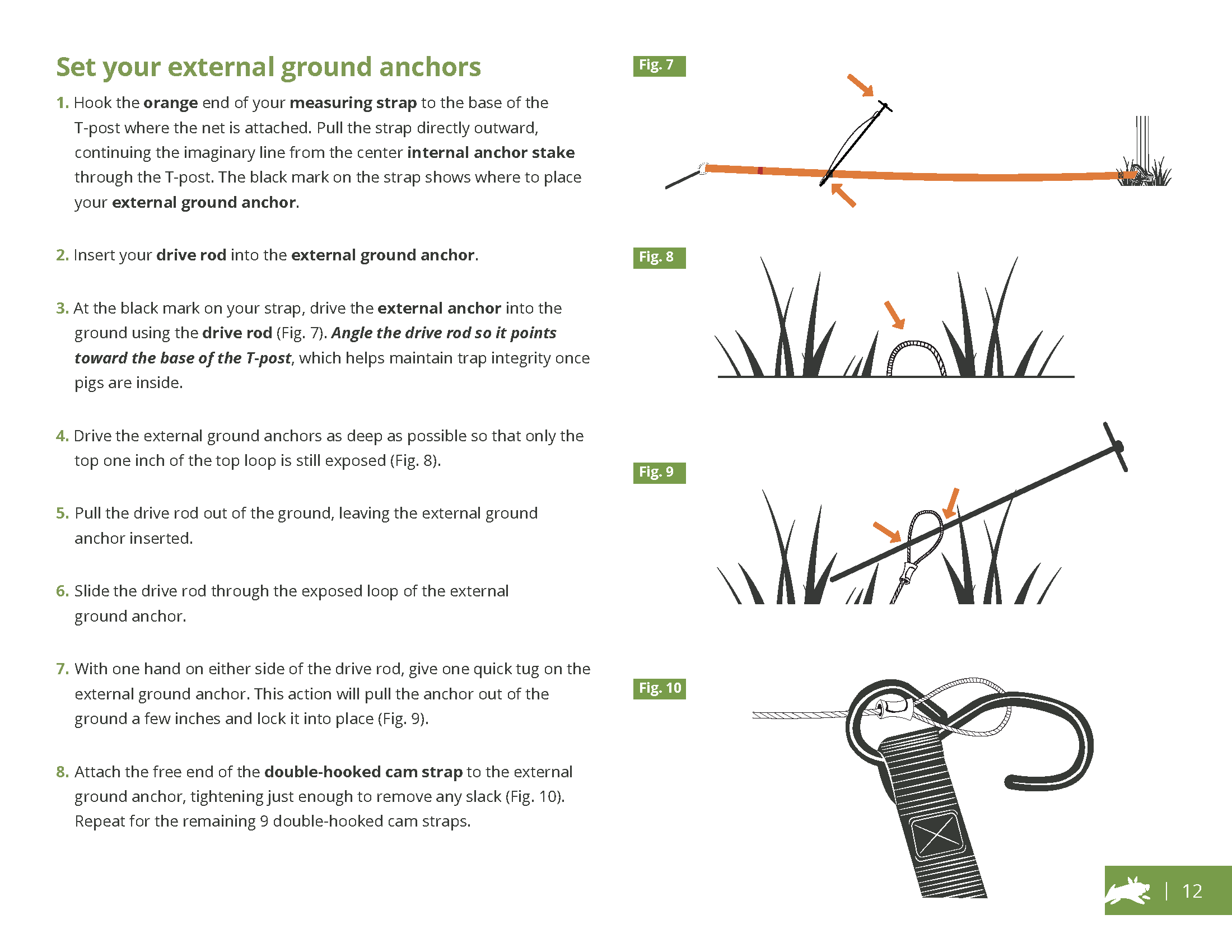

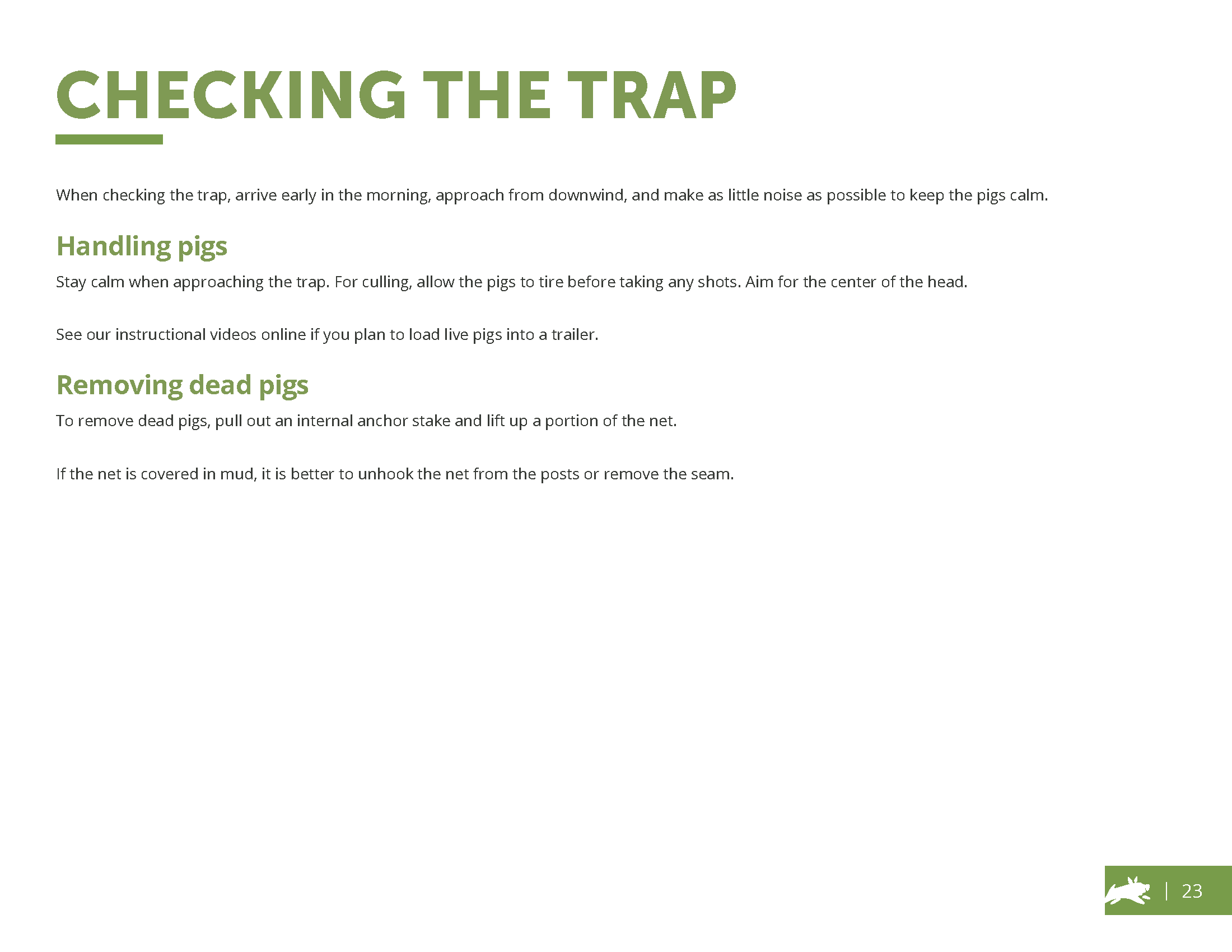

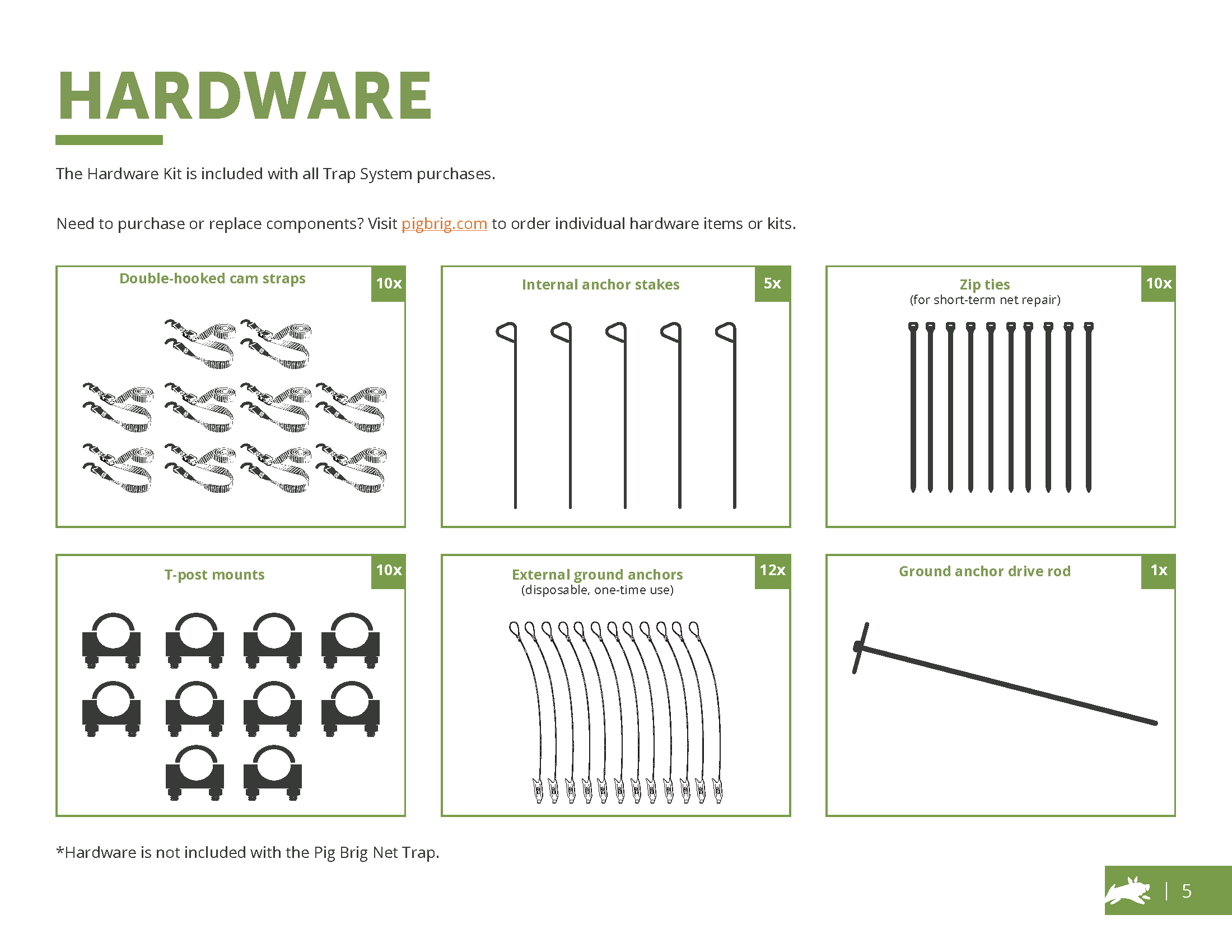

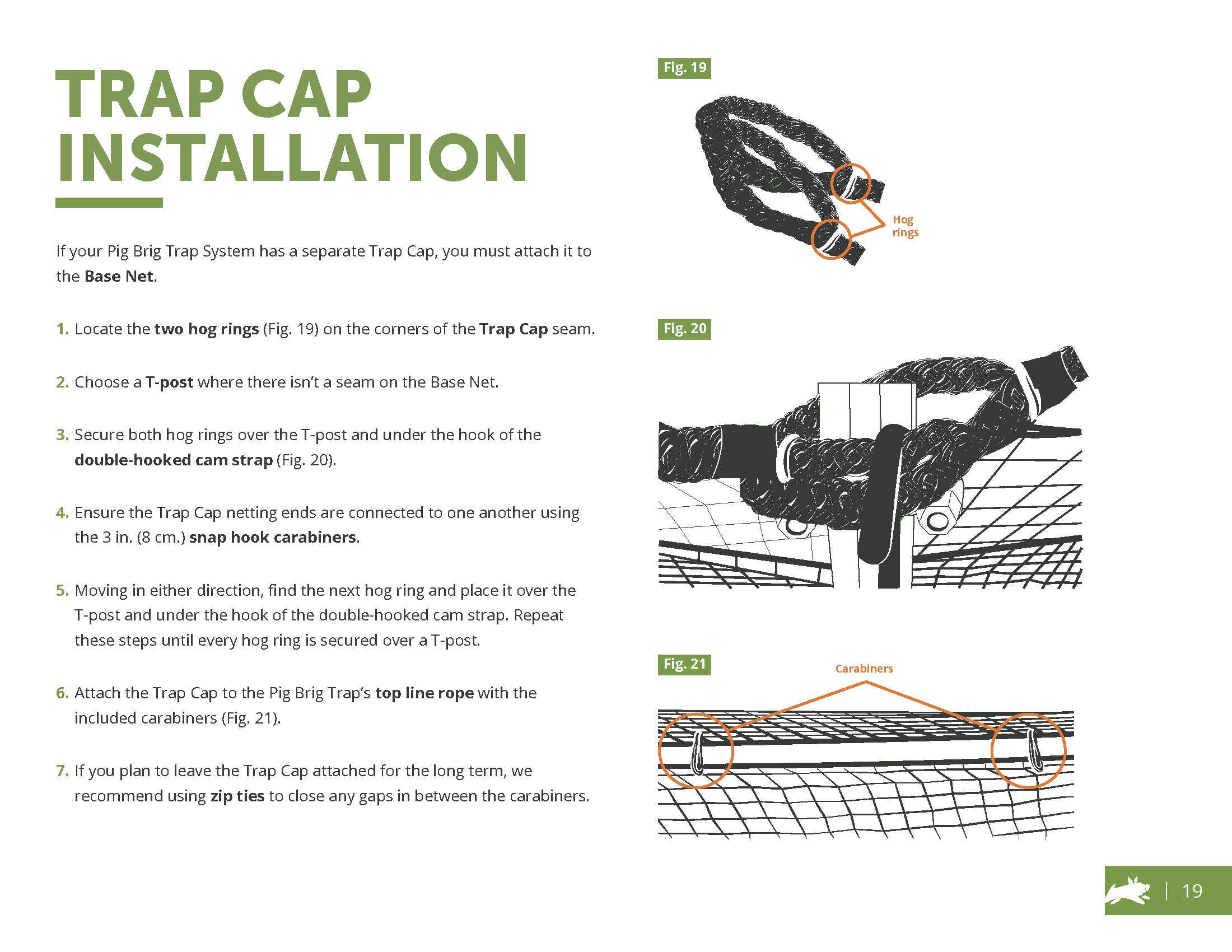

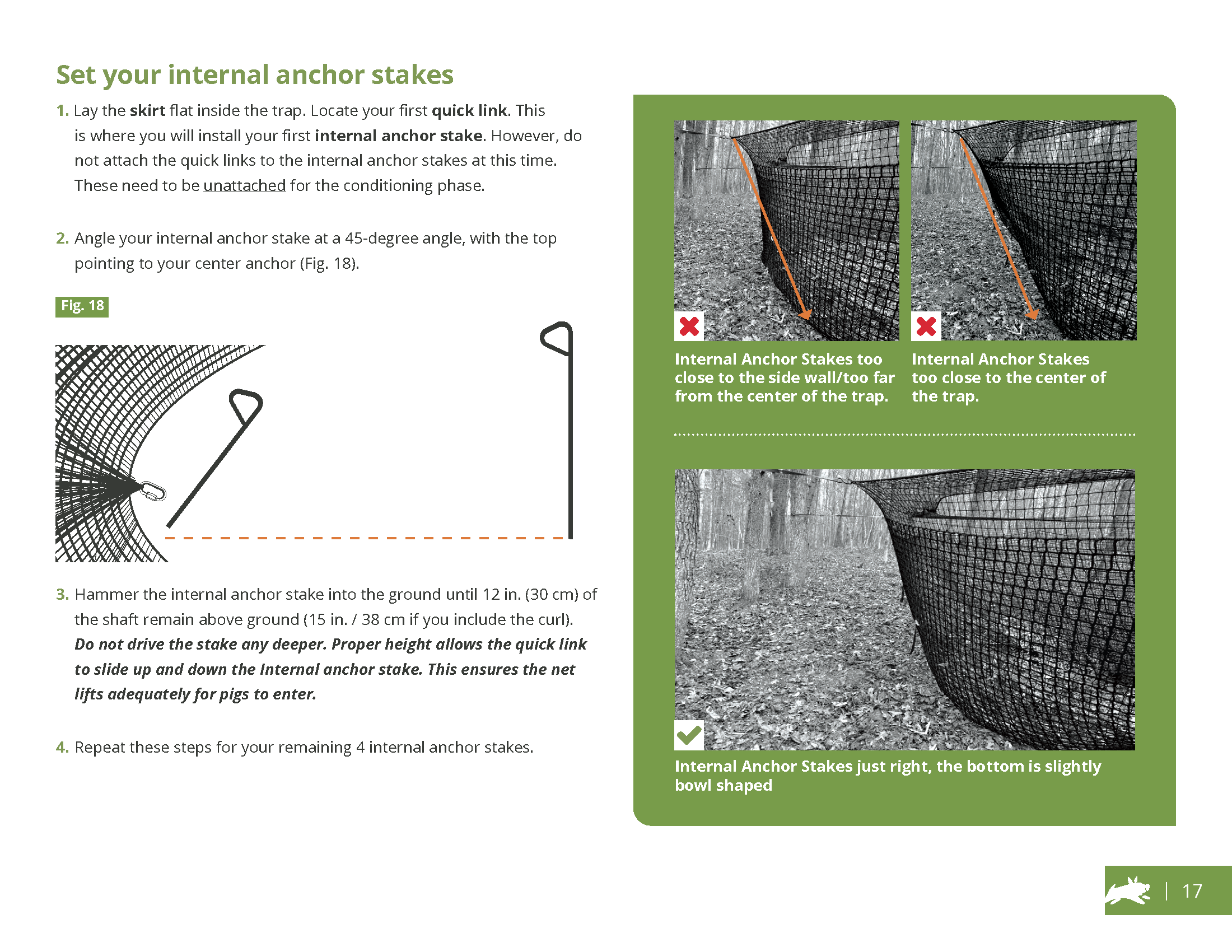

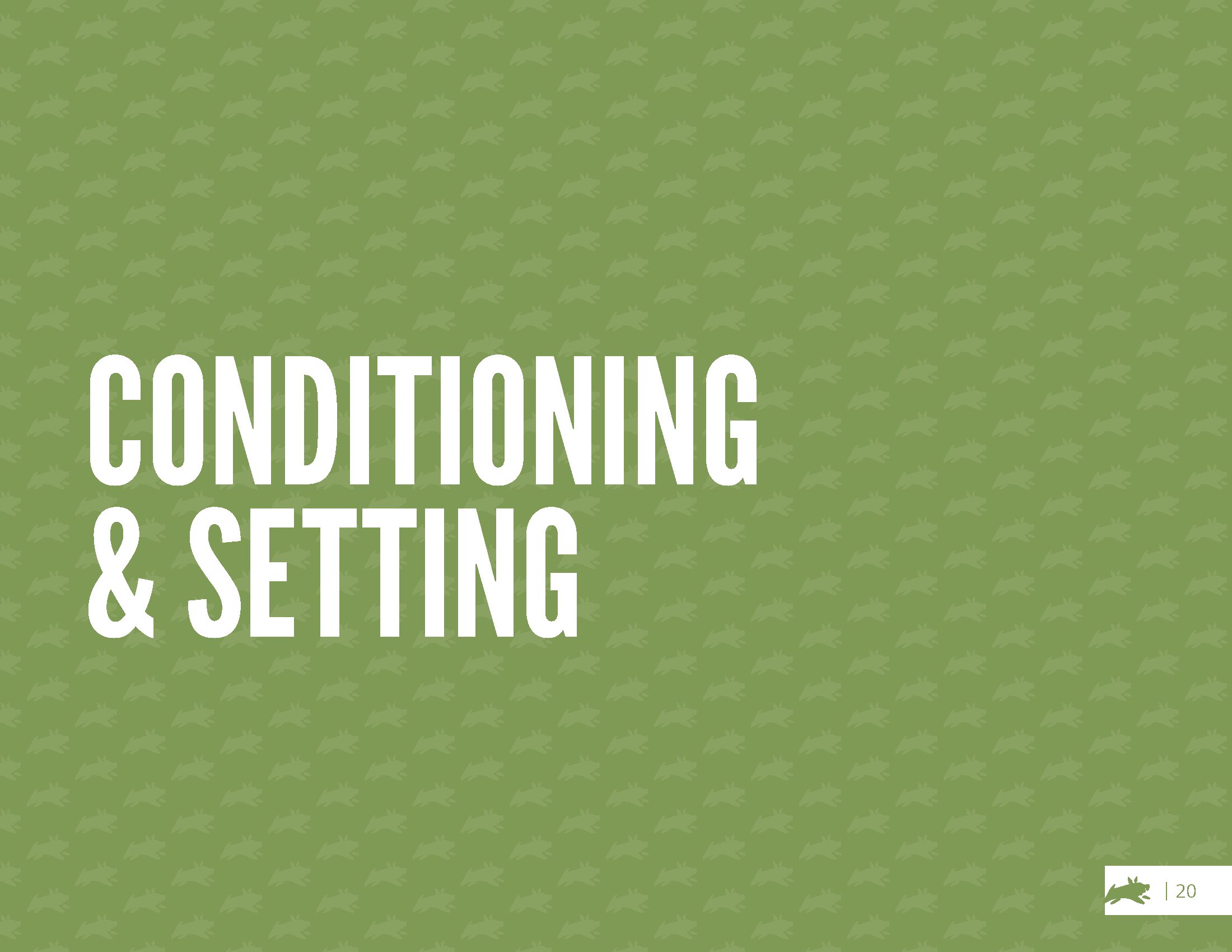

View a web-friendly version of the User Guide below.
